CO/MO 30-200 [EN]

ROTARY VANE PUMPS

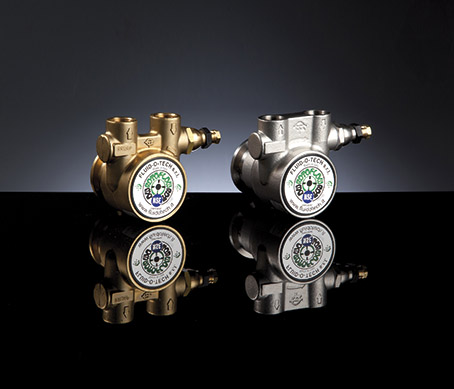

CO/MO 30-200 – Brass and stainless steel rotary vane pumps
In brass with internal parts in stainless steel and graphite
Flow rate: 9 to 63 GPH at 1725 rpm/30 to 200 l/h at 1450 rpm
Pressure: up to 230 psi/up to 16 bar

01-MG200-400

The Compact and Compact Plus series rotary vane pumps are the smallest series of the Rotoflow line of positive displacement pumps. Capable of high performances despite the small size, the Compact and Compact Plus series is the choice when space is an issue.
Technical features and manufacturing characteristics The Compact series housing is brass made only, while the Compact Plus series, equipped with ball bearings supporting the rotor, is available in brass or stainless steel AISI 303. Both are assembled with a stainless steel AISI 303 rotor, carbon graphite pumping chamber and NBR seals. The inlet and outlet ports are 3/8” GAS or NPT threaded. The pumps can be connected to direct coupling motors with a stainless steel clamp.

Maximum operative temperature: 70 °C (158 F).

AVAILABLE UPON REQUEST:
Viton®/EPDM seals, Built-in relief valve
MAIN APPLICATIONS:
Espresso coffee machines, Beverage vending machines, Post mix drink dispensers, Water treatment, Water dispenser, Cooling systems
